Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

Name: Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley
Brand: Remarkable
Price: 1 USD

Quality Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley wholesale

Brand Name : Remarkable

Model Number : KPG

Certification : CE, ISO

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600sets

Delivery Time : 30-45 work days

Packaging Details : 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Power supply : Battery powered

Load : 1-500 tons

Ground type : rail

Operation method : Wireless remote control & Hand operate pendant

Traveling speed（m/min） : 0-20 (Stepless speed regulation)

Other function : Automatic weighing,Equip with turning light, night light, battery display, etc.

Product name : 40 Ton Rail Transfer Trolley

table size : customized

Wheels type : Cast Wheel; Forged Wheel

Contact Now

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

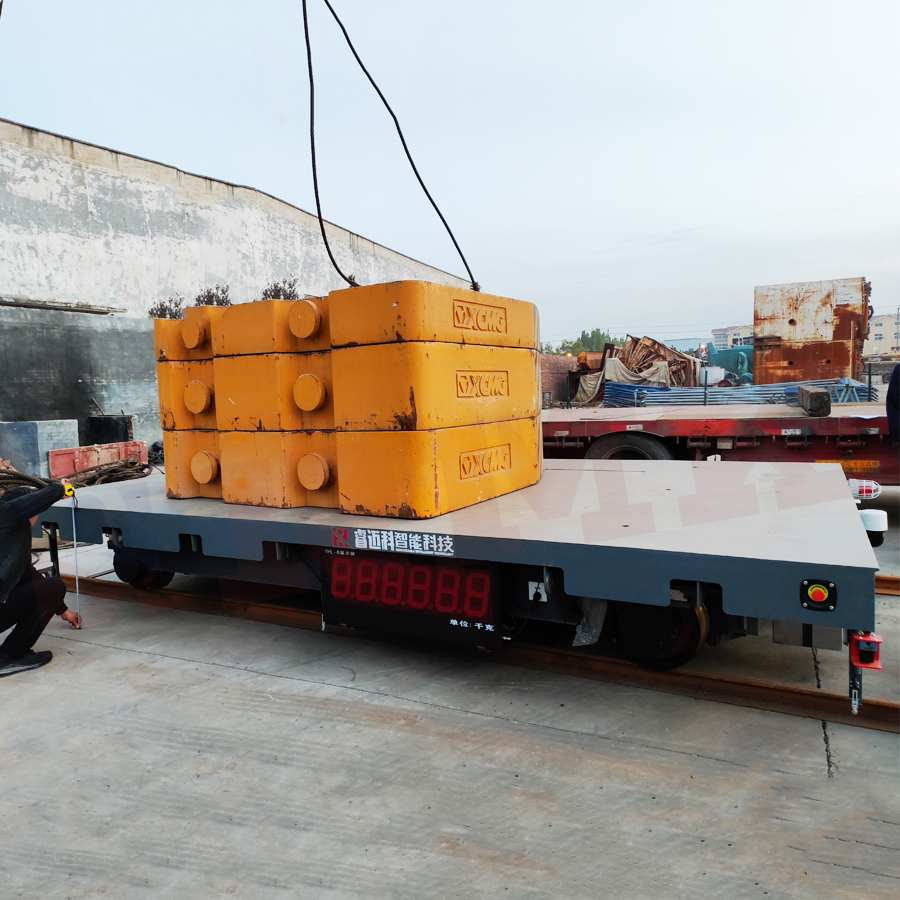

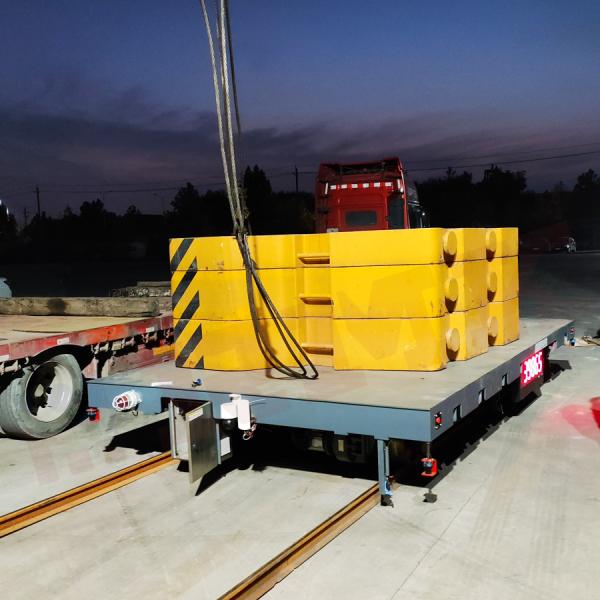

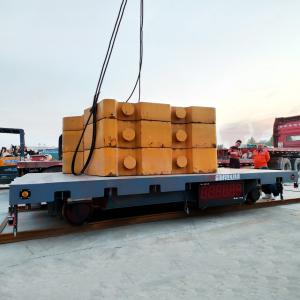

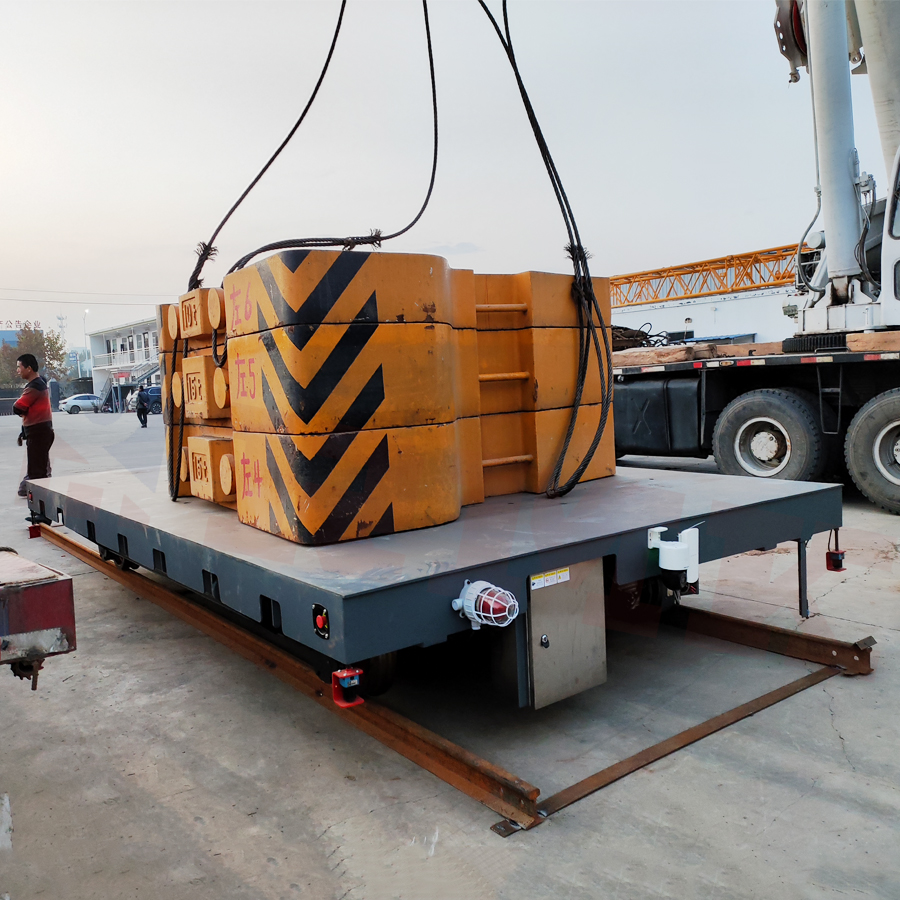

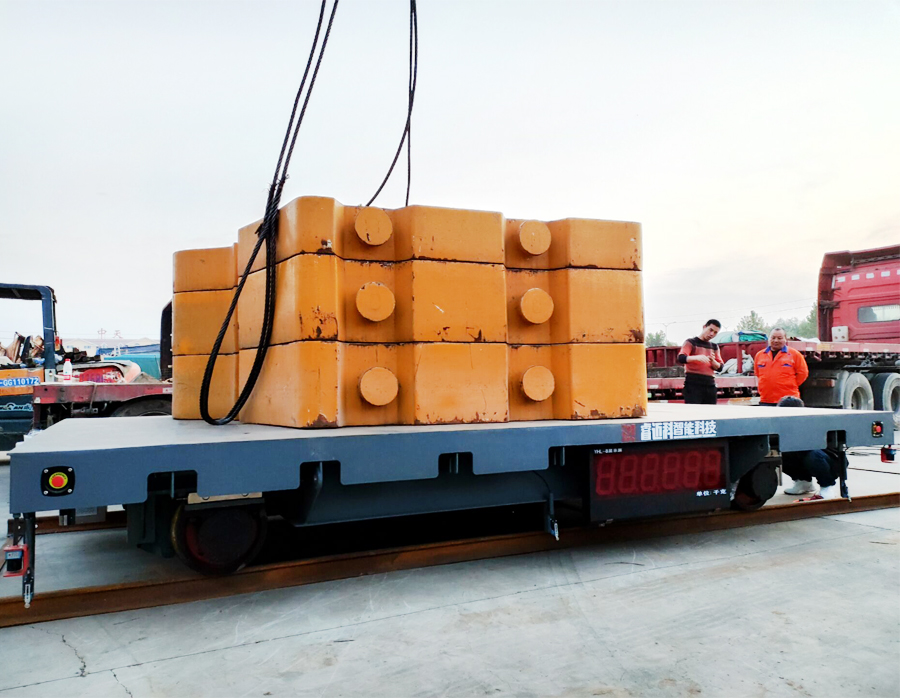

^{The 40 ton rail transfer trolley designed and manufactured by Remarkable for a nuclear power company in China will be delivered to the customer's use site after load test, functional operation test and customer acceptance. The rail transfer cart is equipped with weighing system, explosion-proof device, camera monitoring system and other devices for the transportation of nuclear waste, nuclear materials and other goods.}

^{Remarkable can customize transfer trolleys of various types, functions and fields according to the needs of customers. Welcome to consult and visit!}

Nuclear Industry Apply Heavy Duty 40 Ton Rail Transfer Trolley

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size(mm)	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5
Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away.

^{Advantages of 40 ton rail transfer trolley}

^{Custom stainless steel checkered plate}

^{Large capacity battery power supply}

^{Automatic weighing function}

^{Video monitoring function}

^{Video console}

^{Soft start and soft stop}

^{Two modes of wireless remote control + handle operation are interlocked}

^{Lidar obstacle avoidance}
