DC Motor Remote Control 40 Tons Pallet Rail Transfer Trolleys

Name: DC Motor Remote Control 40 Tons Pallet Rail Transfer Trolleys
Brand: Remarkable
Price: 1 USD

Quality DC Motor Remote Control 40 Tons Pallet Rail Transfer Trolleys wholesale

Brand Name : Remarkable

Model Number : KPX-40T

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/A, L/C, D/P, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 45 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Color : Customized

Application : Industry metallurgy, Material handling/steel coil/industrial

Power supply : Battery

Load capacity : customized

Running speed : 0-20m/min

Size : Customized Size

Power source : battery power

Usage : material transferring

Safety features : Warning alarm and End stop, end stop, Warning alarm

Control model : wireless remote control+hand pendant

Safety facilities : warning light, E-stop

Contact Now

^{DC Motor Remote Control 40 Tons Pallet Rail Transfer Trolleys}

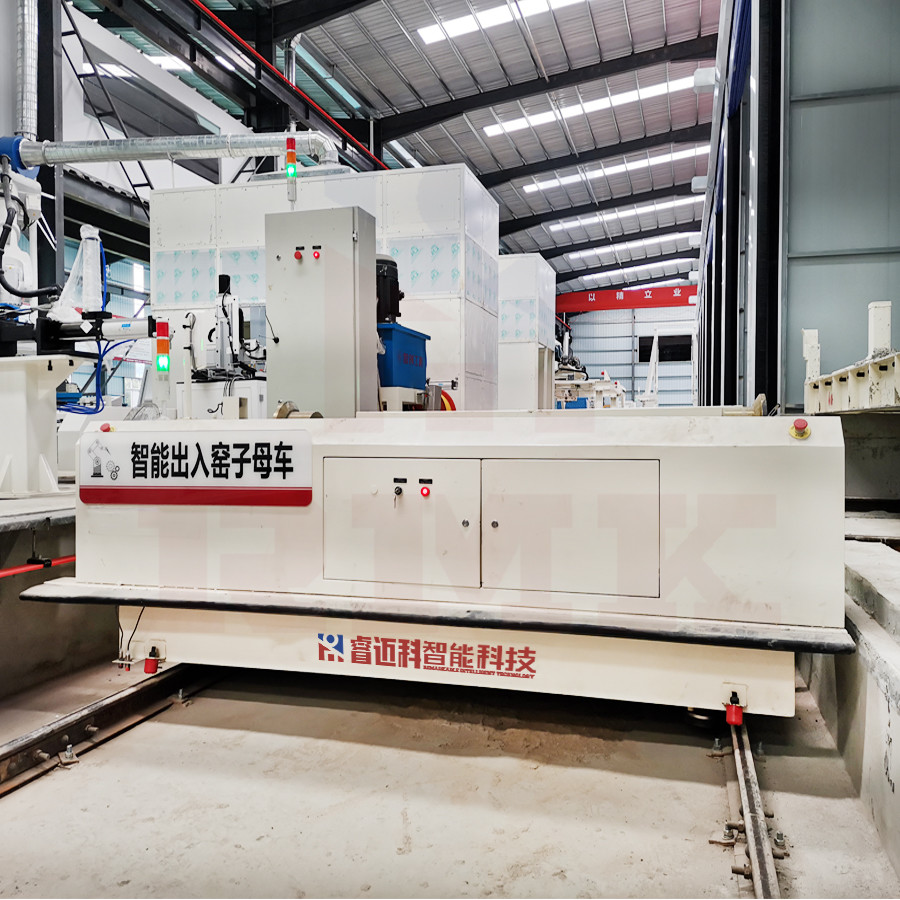

^{The 40 Tons Pallet Rail Transfer Trolleys Is Fully Automated. It Can Automatically Detect Whether The Destination Is Full Of Goods. If The Destination Is Empty, It Can Realize Automatic Unloading. If The Goods Have Been Placed At The Destination, He Will Unload At The Next Destination.}

^{Our Work Can Transport Pallet With A Load Of 1 Tons To 200 Tons. The Rail Power Supply System Is Used To Guide The "Heavy Transport Vehicle" Along The Railway.
Through This Longitudinal Slot Design, The Loading Is Simple And The Capacity Is Optimized.
With A Weight Of 2 Tons And A Bearing Capacity Of 50 Tons, This Car Is Designed For Excellent Durability And Fatigue Life.
Please Remember That All Our Rail Cars Meet CE / ISO Requirements.}

DC Motor Remote Control 40 Tons Pallet Rail Transfer Trolleys

Technical parameters for Cable reel powered electric transfer carts KPJ series
Model		KPJ-6t	KPJ-10t	KPJ-16t	KPJ-25t	KPJ-40t	KPJ-63t	KPJ-100t	KPJ-160t	KPJ-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1150	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1635	1735	1850	2000	2000
Wheel diameter(mm)		300	300	400	400	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Motor model / power		YZ132M1-6		YZ132M2-6		YZ160M1-6	YZ160M2-6	YZ160L-6	YZ160M2-6	YZ160L-6
(Kw)		2.2		3.7		5.5	7.5	11	2×7.5	2×11
Power mode	Cable drum	AC380V		AC380V					AC380V
Power mode	Cable drum	3×2.5+1×1.5		3×4+1×2.5					3×6+1×4
Recommended track model		24kg/m		24kg/m	38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5

^{Uses of heavy duty motorized industrial transfer flat carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.}
