Brand Name : Remarkable
Model Number : RGV
Certification : CE, ISO
Place of Origin : Henan, China
MOQ : 1
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 600sets
Delivery Time : 30-45 work days
Packaging Details : 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply : Battery/cable powered
Load : 1-500 tons
Ground type : rail
Operation method : Wireless remote control & Hand operate pendant
Traveling speed(m/min) : 0-35 (Stepless speed regulation)
Other function : Automatic weighing,roller,lifting table etc.
Product name : Heavy load RGV automatic rail trolley
table size : customized
Wheels type : Cast Wheel; Forged Wheel
high light : rail motorized transfer trolley,heavy load rail flat car,customized rail trolley
Heavy Load RGV Automatic Rail Trolley
The heavy load RGV automatic rail trolley is an electric material handling transfer trolley guided by low voltage rails. This kind of trolley running on the steel rail is used to handle any type of load, regardless of its size or weight, on a defined runtime.
As the RGV trolley is equipped with steel wheels and moves on steel rails they have suited to very high loading capacities thanks to the very low friction between steel and steel.
If the large-tonnage molds are transported by crane, there is a large danger. In order to guarantee safety and reduce the laying of tracks, the heavy load rail transfer trolley was born.
The mold is hoisted to the rail handling bogie by a crane. In order to avoid the mold from sliding on the rail handling trolley, a rubber plate is laid on the table and the mold is transported to the corresponding station by the flat table transfer bogie. The route, but with its own safety monitoring device, will automatically stop when it encounters a pedestrian or an obstacle, and the safety is reliable.
Advantages of rail-guided vehicle
Flexible and environmental;
Low Noise
It can run on S shape rails, arc-shaped rails, and straight rails.
Has no limit on the running distance;
Has no strict requirement on rail construction;
The hydraulic lifting device, V-frame, and power roller can be installed on the platform;
Customized from 1 ton to 1000 tons;
The safety device is installed, including sound & light alarm, Deadman stop, E-stop, Buffer, etc.
Technical parameters for rail power transfer carts | ||||||||||
Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
Wheelbase A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
Number of wheels | 4 | 8 | ||||||||
Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
Note 1) Other gauges, table sizes, and load tonnages can be customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
Custom Options
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Hot Tags: heavy load rgv trolley, China, suppliers, manufacturers, factory, cheap, customized, price, made in China, Galvalume Coil Transfer Cars, Slag Ladle Transfer Cart On Rail, Shipbuilding Rail Transport Truck, Inter Bay Transfer Cars, RGV Rail Shuttle Car, Warehouse Automated Transfer Cart
![]() |

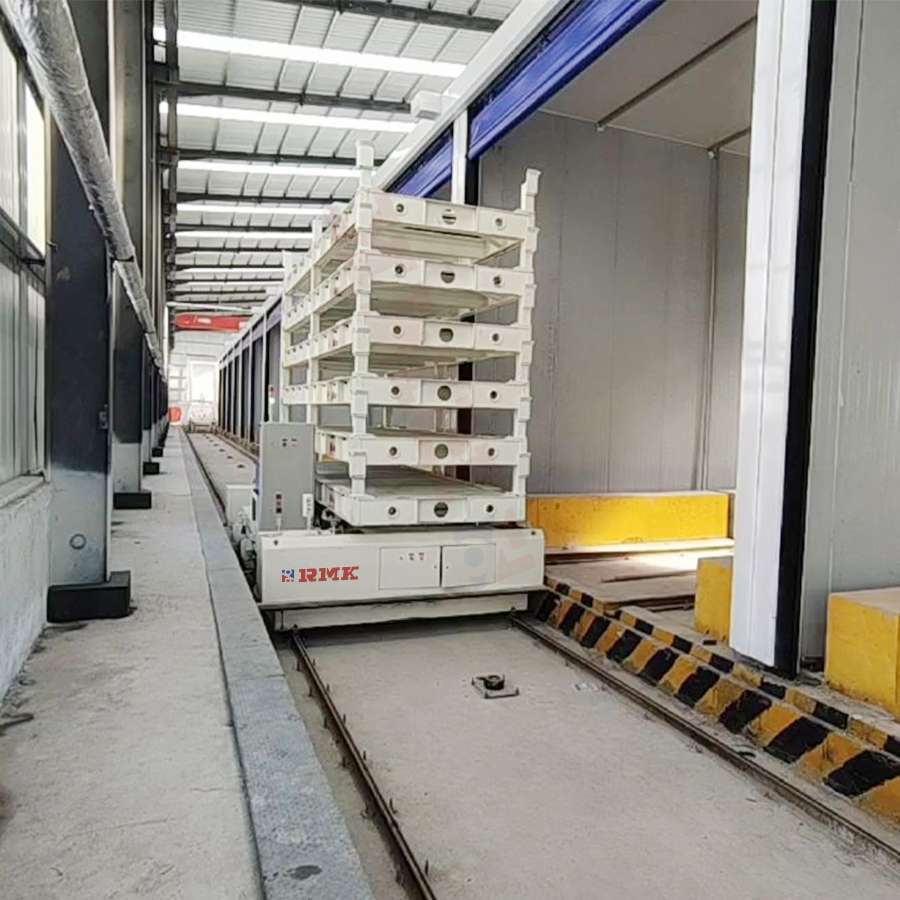

Heavy Load RGV Automatic Rail Trolley Images |
